Fireguard

Protected, thermally insulated secondary containment tank

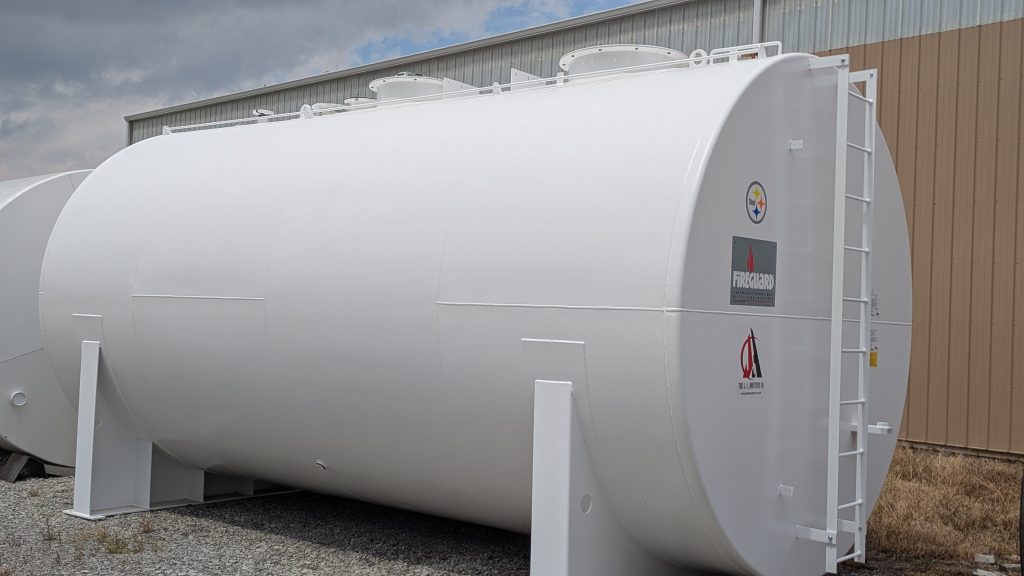

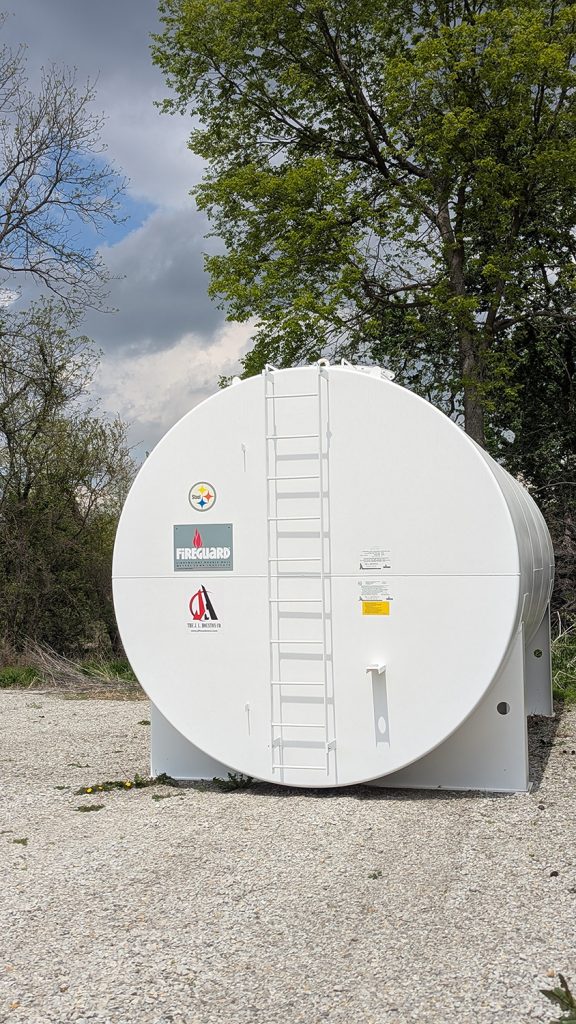

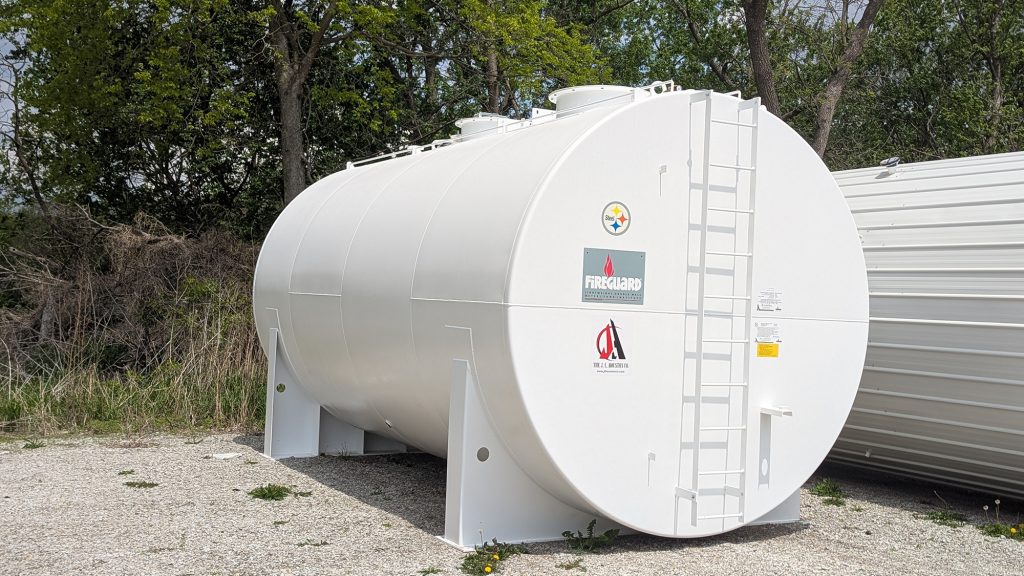

FIREGUARD® double‐wall fire‐protected aboveground storage tank features an inner and outer steel tank with a unique lightweight thermal insulation material that exceeds the UL 2‐hour fire test. Insulating material is 75% lighter than concrete, reducing shipping, installation and relocation costs.

FIREGUARD® Features

• Insulates product in tank from ambient temperature variations, reducing emissions to the environment
• Primary and secondary tank can be tightness tested on site with standard testing procedures, unlike other designs
• Steel outer wall provides low cost maintenance and protection from weathering
• Primary storage tank and secondary containment compatible with a wide range of fuels and chemicals, including biodiesel and ethanol
• Support designs available for all seismic requirements
• Interstitial space can be monitored for leak detection
• Meets temperature requirements when the furnace test was extended to 4 hours (when the tank is constructed with 6 inches of insulating material)

FIREGUARD® is the only tank to meet the following standards:

• UL 2085 Listed “Protected” tank
• Ballistics and Impact protection per UL 2085
• Both the inner and outer steel tanks are built to UL standards
• National Fire Protection Association (NFPA) 30 & 30A
• International Fire Code (IFC)
• California Air Resources Board (CARB) Standing Loss Control testing requirements for air emissions
• Steel Tank Institute (STI) Standard F941 for Protected Aboveground Storage Tanks

Additional Features

• Capacities range up to 75,000 gallons
• Steel construction allows for recycling
• Low cost compartments and customization
• Built to nationally‐recognized STI standards with strict third‐party quality control inspection program
